Mobile asset tracking contributing to improved operational visibility
In globally operating industries like logistics, construction and field services, knowing where your mobile assets are is essential. This blog post shows how GPS data, captured with Phoenix Contact hardware and visualized with the Time Series Data Service, delivers real-time location insights for better field operations.
Accurate asset tracking with PLCnext Technology and Proficloud.io
In industries such as logistics, construction and field service operations, it is essential to know where mobile assets are located and to record this information reliably. The solution described here brings together hardware from Phoenix Contact and the Time Series Data Service. GPS data is continuously recorded, securely transmitted and clearly displayed.
System components
The system uses proven, well-matched components from the Phoenix Contact portfolio:

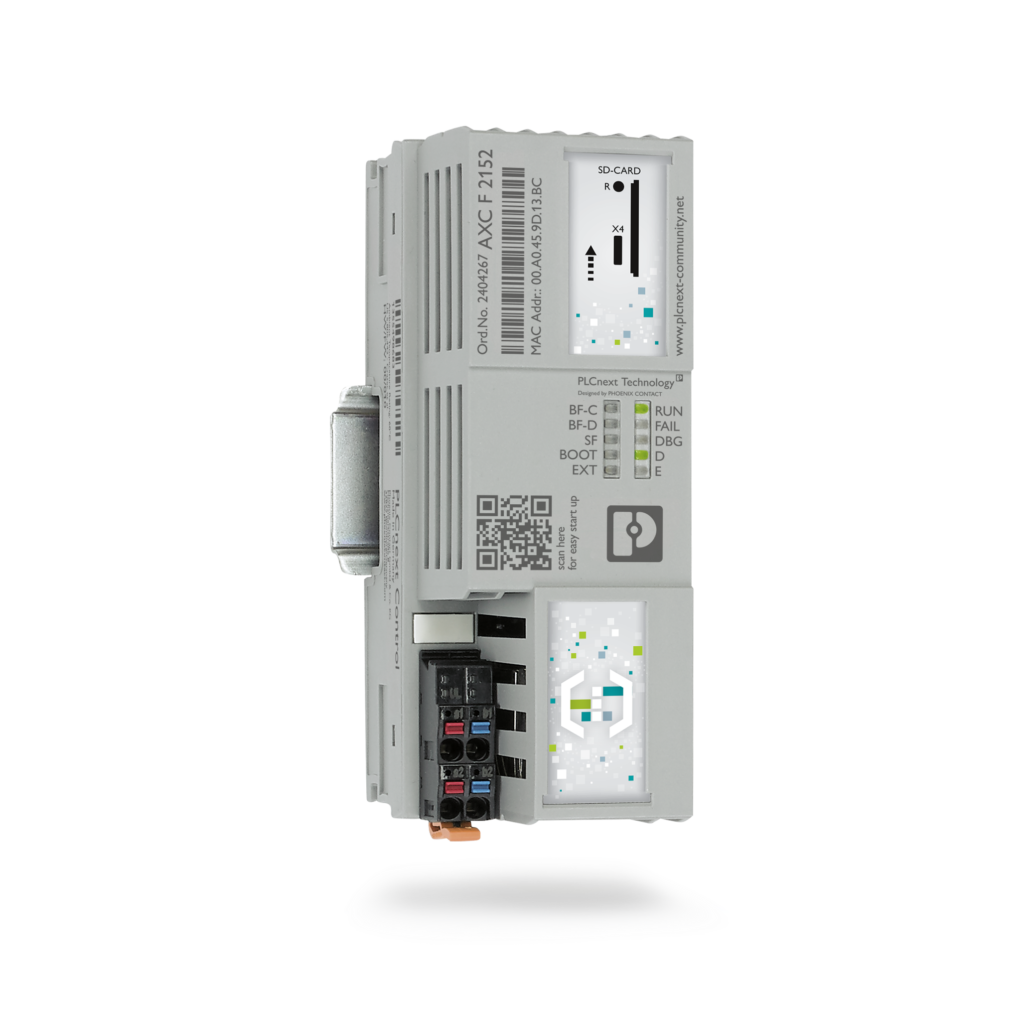

- PLCnext Controller AXC F 2152 (or third-party devices with gateway) Handles incoming data from GPS and other sensors.
- GPS Receiver (accessory) Continuously tracks location (latitude/longitude) and adds timestamps.
- Axioline F I/O Modules Capture additional data such as run times or alerts.
- Cellular Gateway Establishes a secure VPN connection to Proficloud.io and transfers the data.
The system can be set up and connected to the cloud with just a few steps. No advanced IT knowledge is needed, making this a practical option even for smaller companies without internal IT support.

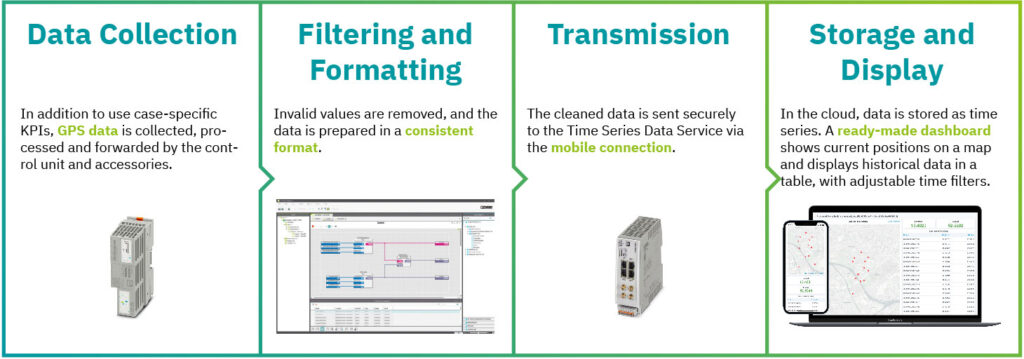

How the data flows
- Data Collection The controller gathers GPS and sensor data at regular intervals.
- Filtering and Formatting Invalid values are removed, and the data is prepared in a consistent format.
- Transmission The cleaned data is sent securely to the Time Series Data Service via the mobile connection.
- Storage and Display In the cloud, data is stored as time series. A ready-made dashboard shows current positions on a map and displays historical data in a table, with adjustable time filters.
Why this approach works
- Modular setup Components can be selected based on the use case.
- Quick to deploy The system is ready to use shortly after installation.
- Clear overview Location and status data can be accessed at any time.
- Useful history Movement patterns, idle times, or area boundaries can be reviewed later.
- Flexible expansion More devices or sensors can be added through configuration.
- Secure and compliant Encryption and role-based access help meet legal and internal requirements.
About the Smart Service: Time Series Data Service
The Time Series Data Service is made for industrial use. It provides:
- Fast processing of large amounts of data
- Built-in visualizations for both time and location data
- Open interfaces (APIs) for integration with other systems
- User management with role-based permissions
Summary: Scalable GPS monitoring for global operations
This combination of PLCnext Technology and Proficloud.io offers a reliable solution for tracking mobile equipment using GPS. It’s well suited to sectors where assets are used in changing or remote locations. The system helps companies monitor movement, review historical trends and stay connected to their equipment – without needing complex infrastructure.

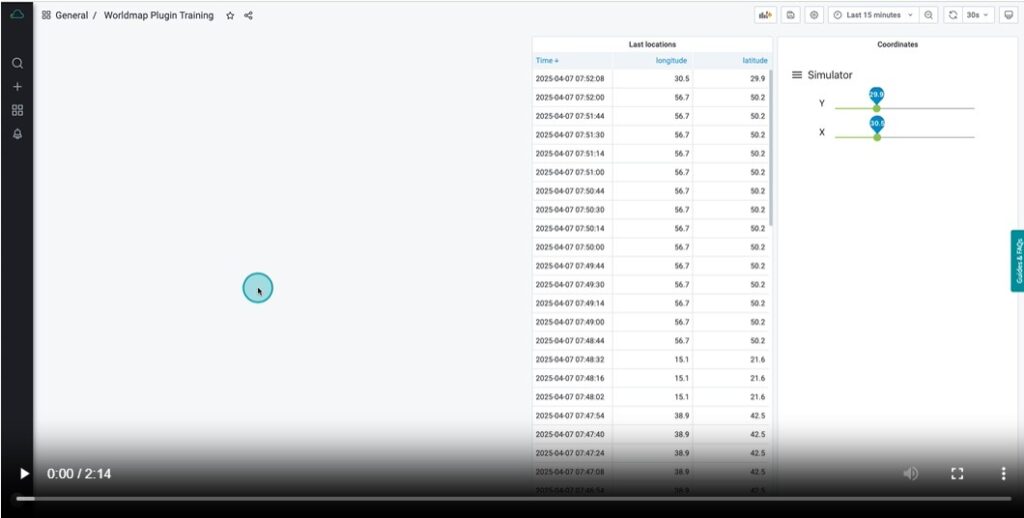

How can I use the Worldmap Panel in the Time Series Data Service?
