Technical Documentation: Proficloud.io Landscape

Proficloud Service Landscape

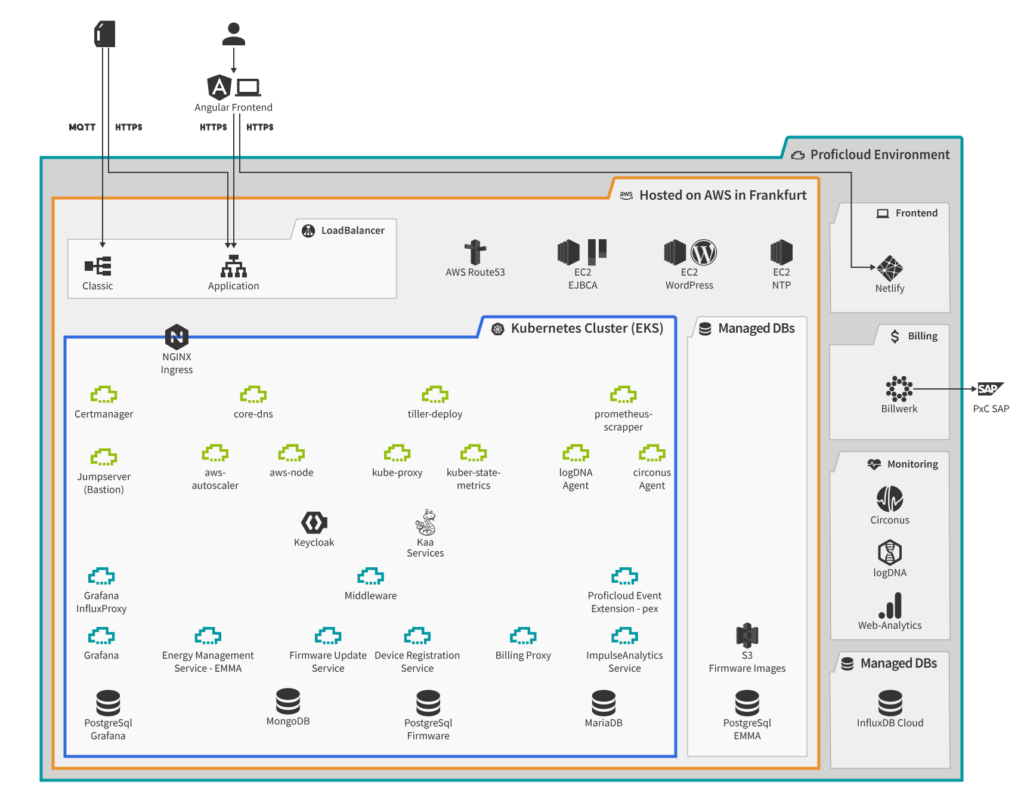

The next diagram shows our service landscape for Proficloud.

We have several services used of external service providers, like our content delivery network Netlify, the billing system Billwerk or our monitoring systems like logDNA and Circonus.

We also use some of the more generic services of our cloud provider AWS, like the load balancers, virtual machines and managed databases. Here our mantra is that we only use those services which are functional wise identically usable at other cloud providers, like Alibaba Cloud or MS Azure, to prevent the vendor lockin on AWS.

Our own implemented services are running in Kubernetes as Docker containers, together with some third party services as well.

Proficloud Technology Landscape

The technology landscape of our Proficloud shows the different frameworks, programming languages and systems we are using in the different layers to build up our Proficloud architecture, all in one picture.
